Fume Hood
Weld Fume Extraction Hood
Torit® Fume Hood
The Donaldson Torit® Fume Hood is the ideal solution for operations whose applications include robotic welding or manual weld cells. The Fume Hood’s low-profile provides greater installation flexibility than traditional canopy-style hoods and its engineered design provides effective weld fume collection in the most challenging environments. When paired with the optional weld curtains, the Fume Hood can be sized to reduce airflow requirements, ultimately lowering the overall cost of the entire dust collection system.
Whether connected to an existing system or a dedicated cartridge collector, the Fume Hood brings added extraction capabilities to any operation. The Fume Hood comes in multiple sizes and is available in free-standing and ceiling-mounted configurations for better integration into your workflow.
Dimensions & Specs
| Width x Length | Height | Weight |
|---|---|---|
| 4 x 6 ft (1.2 x 1.8 m) | 11 in (279.4 mm) | 165 lb (75 kg) |
| 6 x 6 ft (1.8 x 1.8 m) | 11 in (279.4 mm) | 220 lb (99 kg) |
| 8 x 8 ft (2.4 x 2.4 m) | 11 in (279.4 mm) | 320 lb (145 kg) |
| 10 x 10 ft (3 x 3 m) | 11 in (279.4 mm) | 450 lb (203 kg) |
Install configuration: hanging standard
Optional Equipment
- Weld Curtains
- Support Legs
- Integrated Lighting
Resources
Product Literature

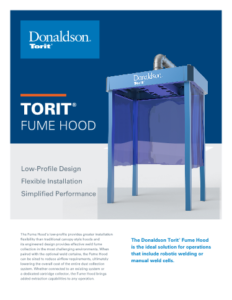

Brochure
Brochure

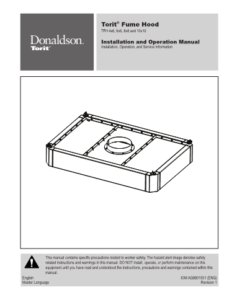

Manual
