PowerCore® CP-Series Dust Collectors

Smaller & Smarter Filtration Where You Need It

Torit® PowerCore® CP Series collectors with PowerCore filter packs are changing the way we collect dust and they are available only from Donaldson Torit. PowerCore technology has proven itself in other industries for over 10 years.

Donaldson Torit® PowerCore® CP Series cartridge dust collectors use smaller, more efficient filters compared to baghouse models with a footprint up to 50% smaller.

Donaldson PowerCore® CP Series

It’s smart to switch to a Donaldson Torit® PowerCore® CP Series dust collector. It uses significantly smaller and more powerful filter packs than baghouses, provides better dust collection, requires less steel, saves transportation costs, and lowers operational costs.

The key is PowerCore filter packs. Combining Donaldson Torit’s proven and proprietary Ultra-Web® surface-loading technology with a rugged fluted-media configuration, PowerCore filter packs last longer, clean easier, lower emissions, and eliminate bridging.

CP Series Models

Stand-Alone

Torit PowerCore CPC stand-alone dust collectors, available in a range of airflows from 1,189 to 56,067 m3/h / 700 to 33,000 cfm, use less floor space and fit into tight spaces.

Bin Vent

Torit PowerCore CPV bin vent systems, with airflows of 765 to 13,932 m3/h / 450 to 8,200 cfm, deliver more powerful technology in a much smaller package. The comparison to traditional bag-style bin vents is dramatic. CPV bin vent collectors are almost 70% shorter than other bag-style bin vents and effectively address the frequent challenge of tight space limitations. These bin vents can be installed at point-of-use on silos, conveyor transfer points, conveyor discharges, blenders and mixers.

Advantages

Smaller

And just how small is Torit PowerCore? A stand-alone Torit PowerCore CPC Series dust collector is 50% smaller than a traditional baghouse and a CPV bin vent collector is up to 70% smaller than other bag bin systems. With Torit PowerCore, you can save space, install at point of use, eliminate duct work and replace a large central dust collector.

Smarter

An optimized airflow management system delivers optimal pulse cleaning while minimizing airflow restriction.

Cost-Effective

Innovative PowerCore filtration technology means reduced freight and installation costs, fewer filter changeouts, lower maintenance costs, and no entry requirements for filter changes. Today’s streamlined and lean manufacturing facilities demand peak performance even within the smallest spaces. Torit PowerCore space-saving dust collectors are available as stand-alone models that can be ducted to many different applications, as well as bin vent models used on applications like silos, conveyor transfer points, conveyor discharges, blenders and mixers.

PowerCore® Filter Packs

The high filtration efficiency of PowerCore® Filter Packs reduces emissions and saves energy, lowering your total cost of ownership.

Easy Filter Changes

An entirely new approach to dust collectors, the PowerCore filter pack is small, lightweight, and easily handled by one person.

78% Fewer Emissions

The PowerCore filter pack’s obround shape, in conjunction with Donaldson proprietary Ultra-Web media, trap more dust on the surface of the media flutes than conventional filter bag materials.

IoT Enabled with iCue™ Connected Filtration Service

This collector* is now enabled with Donaldson’s iCue™ connected filtration monitoring service. Designed to remotely monitor a facility’s dust collection equipment and provide operational insights directly to end-users, this information can help manufacturers reduce unplanned downtime, support efficient maintenance and operation, and automatically capture compliance data.

iCue^™ Connected Filtration Service for
Dust, Mist & Fume Collectors

* may not be available on all models

Resources

Product Literature

Brochure

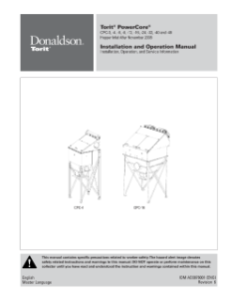

CPC Manual

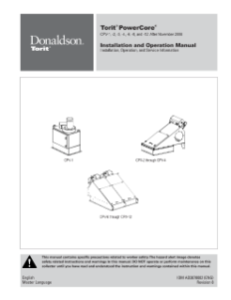

CPV Manual

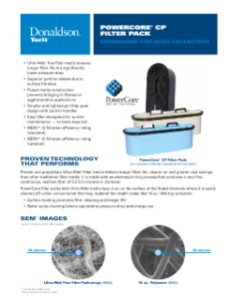

Filter Packs

Key Industries

Standard & Optional Features

Collector Design	Standard	Optional
Mild Steel Construction	✓
Clean-Side Filter Pack Removal	✓
Tool-Free Filter Removal	✓
Hopper Access Panel	✓
Sprinkler Taps	✓
Mountable Fan Package (CPC-3 through CPC-24)		✓
Stainless Steel Construction		✓
Filter Packs	Standard	Optional
PowerCore with Ultra-Web	✓
PowerCore AS (Anti-Static) with Ultra-Web		✓
Paint System	Standard	Optional
Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance	✓
Premium Duty Finish		✓
Custom Colors, Materials, and Finishes		✓
Pyramid Hopper Discharge Options	Standard	Optional
Pyramid Hopper	✓
Trough Hopper with High Inlet (CPC-16 through CPC-48)		✓
Dumpster Hopper (CPC-16 through CPC-48)		✓
Hopper Discharge	Standard	Optional
Slide Gate Pack		✓
55-Gallon Drum Covers		✓
Transitions for Rotary Valves		✓
Support Structure	Standard	Optional
48″ Clearance Beneath Hopper	✓
Leg Extensions		✓
Electrical Controls, Gauges and Enclosures	Standard	Optional
Control Box NEMA Type 4 with Timer	✓
Solenoid Enclosure NEMA Type 4	✓
Magnehelic* Gauge	✓
Delta P Control NEMA Type 4 with Timer		✓
Delta P Plus Control NEMA Type 4 with Timer		✓
Delta P Control (no timer)		✓
Solenoid Enclosure NEMA Type 9		✓
Heated Solenoid Pack		✓
Heavy Duty Cold Climate Kit		✓
Photohelic* Gauge		✓
Custom Control Panels		✓
Safety Features	Standard	Optional
Explosion Vents		✓
Sprinkler Pack		✓
Platforms and Ladders (CPC 16-48)		✓
Electrical Grounding and Bonding		✓
Warranty	Standard	Optional
10-Year Warranty	✓

Torit PowerCore CPV Collectors

Collector Design	Standard	Optional
Mild Steel Construction	✓
Clean-Side Filter Pack Removal	✓
Tool-Free Filter Removal	✓
Mountable Fan Package		✓
Outlet Weatherhood		✓
Stainless Steel Construction		✓
Vertical Orientation		✓
Filter Packs	Standard	Optional
PowerCore with Ultra-Web	✓
PowerCore AS (Anti-Static) with Ultra-Web		✓
Paint System	Standard	Optional
Polyester Textured Finish	✓
Hostile Environment Finish		✓
Custom Colors, Materials, and Finishes		✓
Safety Features	Standard	Optional
Electrical Grounding & Bonding		✓
Electrical Controls, Gauges and Enclosures	Standard	Optional
Control Box NEMA Type 4 with Timer	✓
Solenoid Enclosure NEMA Type 4	✓
Magnehelic* Gauge	✓
Delta P Control NEMA Type 4 with Timer		✓
Delta P Plus Control NEMA Type 4 with Timer		✓
Delta P Control (no timer)		✓
Solenoid Enclosure NEMA Type 9		✓
Heated Solenoid Pack		✓
Heavy Duty Cold Climate Kit		✓
Photohelic* Gauge		✓
Custom Control Panels		✓
Warranty	Standard	Optional
10-Year Warranty	✓

* Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.
