Weld Bench
Self-Contained Welding Workstation
The Donaldson Torit® Weld Bench is a work bench designed specifically for fume collection in welding operations.
Weld Bench Fume Extractor
The Donaldson Torit® Weld Bench fume dust collector is a flexible, convenient altertantive to moving extraction arms.
Features
- Eliminates moving extraction arms over the welding zone
- Meets ACGIH guidelines for capturing weld fume — 45.7 m/min / 150 fpm minimum capture velocity through the breathing zone
- Provides a cleaner work environment for maximum productivity
- Hinged side-wing panels accommodate longer workpieces
- Ergonomically designed for operator comfort
- Easy filter maintenance from clean air side makes filter changeout quick and efficient
- Standard Ultra-Web® FR cartridges, with fine fiber technology, provide higher filtration efficiency and longer filter life
- MERV* 15 filtration efficiency rating per ASHRAE 52.2-2007
- Helps support OSHA Clean Air Standards
- Quiet operation
*The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 36 meters per minute / 118 feet per minute and loading up to 101.6 mm / 4 in. water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency. MERV 15 available in U.S. only.
Resources
Product Literature
Brochure

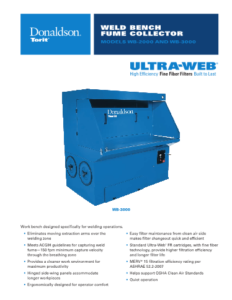

Datasheet

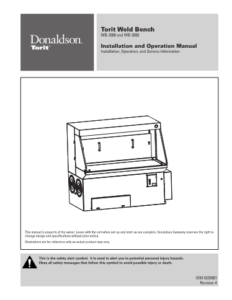

Manual
