Easy-Trunk™ and Porta-Trunk™
Compact, Portable Fume Collectors
Compact, portable fume collectors effectively filter smoke, dust, and fumes from welding and grinding applications.
Easy-Trunk™ and Porta-Trunk™ collectors are portable filter systems designed for light-duty dust, smoke, and welding fume collection.
Easy-Trunk™ Collector
![Donaldson Easy-Trunk portable fume collector | AST Canada](https://astcanada.ca/wp-content/uploads/2022/12/Easy-trunk-collector-300x300.jpg)
- For heavier duty or more frequent plant operations
- Built-in pulse filter cleaning system
- Push buttons conveniently located on front of unit and/or on fume hood
- Ultra-Web® fine fiber filters provide high MERV* 15 filtration efficiency per ASHRAE 52.2-2007
- “Plug and go” operation
- Fits easily through standard doorway
Porta-Trunk™ Collector
![Donaldson Porta-Trunk portable fume collector | AST Canada](https://astcanada.ca/wp-content/uploads/2022/12/1635282258284-300x300.jpg)
- For light duty or infrequent plant operations
- Static (non-pulsed) filter system
- Operating controls conveniently located on fume hood
- Ultra-Web fine fiber filters provide high MERV* 15 filtration efficiency per ASHRAE 52.2-2007
- “Plug and go” operation
- Fits easily through standard doorway
Applications
The Easy-Trunk and Porta-Trunk compact, portable fume collectors effectively filter smoke, dust, and fumes from applications including:
- Metalworking
- Welding
- Grinding
Resources

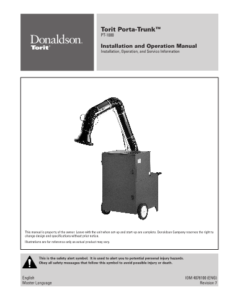

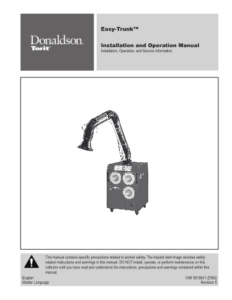

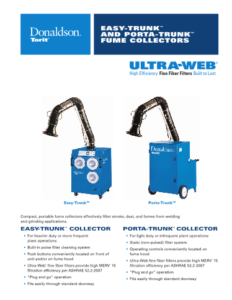

Product Literature
Related Technical Articles & Case Studies
Standard & Optional Features
Easy-Trunk & Porta-Trunk Features | Standard | Optional |
---|---|---|
Ultra-Web® FR cartridge filters | ![]() |
|
1.5 HP TEFC motor 115/60/1 voltage | ![]() |
|
Extraction arm: 152.4 mm x 2.0 m / 6 in. x 6.5 ft | ![]() |
|
Hood-mounted light with switch | ![]() |
|
Fully assembled and wired 10-year warranty | ![]() |
|
Extraction arm: 152.4 mm x 3.0 m / 6 in. x 10 ft | ![]() |
![customer-service-rep-female customer-service-rep-female](https://astcanada.ca/wp-content/uploads/elementor/thumbs/customer-service-rep-female-q7ypbpzp1tz1ahljlp98415ybs04shsi7j3cytn5ds.png)
Easy-Trunk™ and Porta-Trunk™ collectors are portable filter systems designed for light-duty dust, smoke, and welding fume collection.
