Pleated Baghouse Filters
Longer Filter Life, Higher Efficiency & Cost-Savings
Donaldson Pleated Bag Filters
Donaldson® Torit® proven technology for your baghouse collector combines the superior performance of Ultra-Web® nanofiber technology with a sturdy spunbond polyester substrate. These pleated bags provide higher efficiency, longer filter life & greater cost savings. Upgrade from fabric-style filter bags to Ultra-Web® SB pleated bags.
Donaldson Ultra-Web SB Advantages
- Advanced media is more efficient in capturing submicron dust particles (0.3 micron and larger)
- Longer filter life and better pulse cleaning due to surface loading technology
- Lower energy use with better pulse cleaning and lower operating pressure drop
- Cleaner air, longer filter life, and greater cost savings
Oval Configuration for Pleated Bags
Donaldson Torit also offers an oval configuration to the Torit pleated filter bag program that allows Donaldson to put its nanofiber technology into all popular makes and models of baghouse collectors.
Pleated Bag Solutions to Common Filtration Problems
| Common Filtration Problem | Pleated Bag Solution |
| Not Enough Filter Area | Pleated bag filters can provide almost twice as much filtration area in existing equipment due to the increased media in the pleat pack design. |
| High Pressure Drop | the airflow stays the same. The pressure drop also decreases. |
| Abrasion | Pleated bag filters are shorter than the fabric bags they’re replacing. This allows for a larger drop out area and less opportunity for bag abrasion. |
Ultra-Web SB offers all the benefits of spunbond media, plus the superiority of nanofiber technology allowing for the capture of submicron particulate reducing stack emissions. | |
Pleated bag filters offer up to 2-3 times the filter life over 16 oz. polyester felt bags. |
A Closer Look at Pleated Bags
Opening
Patent-pending, aerodynamic designed high flow opening generates 30% more cleaning energy.
iSeal Gasket
Soft, gray EPDM ensures an easy and secure fit for top load collectors. (Patent pending)
One-Piece Construction
Filter and cage together in a one-piece design make changeouts easier.
Filter Media
Ultra-Web® SB outperforms the standard spunbond products and provides:
- Longer life
- Higher efficiency
- Lower pressure drop
- Tolerance to chemicals & moisture.
- Operation for temperatures up to 250°F/121°C.
Oval Design
Includes hold-down hardware.
Moulded Urethane Top Construction
Unique, one-piece moulded design for top load collectors eliminates potential leakage point at tubesheet.
Soft Polyurethane boot installs easily on bottom load applications.
Banding
Superior urethane attachment method.
Pleated Pack
Pleated media increases effective area without adding more equipment.
Consistent pleat spacing to enhance cleaning
Pleated Bag Categories
Perfomance

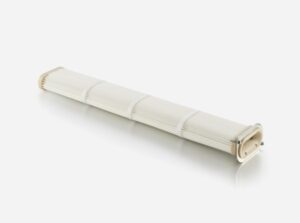

Ultra-Web® SB
Donaldson Ultra-Web® SB pleated bag filter media deliver longer filter life, higher efficiency and offer greater energy savings than traditional filter bags.
Specialty

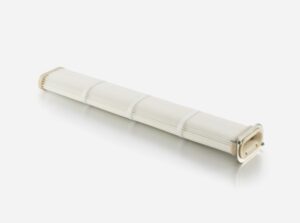

PTFE Torit-Tex®
Donaldson Torit-Tex® pleated bag filters last longer and out-perform traditional polyester filter bags in high moisture and harsh chemical applications.

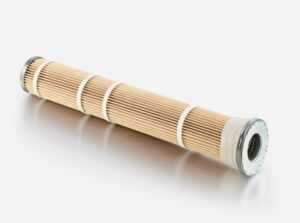

Aramid
Donaldson Aramid pleated bag filters are designed to withstand dry, high-heat baghouse dust collector applications up to 191° C / 375° F.
PPS
Donaldson PPS pleated bag filters deliver performance in applications that require alkaline or chemical resistance, along with higher temperature requirements.

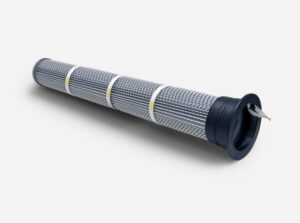

Conductive Grid
Donaldson Conductive Grid pleated bag filters last longer and out-perform traditional polyester filter bags in electrostatic environments.
Standard

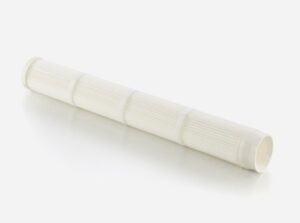

Spunbond
Donaldson Spunbond standard pleated bag filters deliver longer filter life, higher efficiency and offer greater energy savings than traditional filter bags.
