FT Series Pulse-Jet
Economical, Top Filter Access
The Donaldson Torit® FT Pulse Jet baghouse dust collector provides easy and dependable operation for high-volume dust collection applications.
FT Series Pulse-Jet Top-Filter Baghouse Dust Collector
The Donaldson Torit® FT Pulse Jet baghouse dust collector offers easy and dependable operation for high-volume dust collection applications.
Filter Options
Dura-Life bag filters
Dura-Life bag filters are engineered with a unique hydroentanglement process that uses water to blend the fibres. This process provides a more uniform material with smaller pores, better surface loading, and better cleaning. These advantages provide twice the operating life before bags need to be replaced due to high-pressure drops. Longer life from Dura-Life bag filters lowers maintenance and operating costs and raises baghouse dust collection to a whole new level.
Ultra-Web SB Pleated Bags
The Ultra-Web SB Pleated Bags option provides spunbond pleated filters with our Ultra-Web fine fiber web-like net to capture dust on the surface of the filter. These filters reduce emissions and provide longer filter life which reduces maintenance and downtime costs.
Features
- Clean side bag removal provides easier bag filter service.
- Optional walk-in plenum allows for bag filter servicing in adverse weather conditions (FTP).
- All welded construction provides increased durability and air/water integrity.
- Integral fan option up to 75 HP helps to reduce space requirements.
- Unique cleaning system minimizes moisture and particulate issues in pulse valves.
- Collectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs.
Two Breakthrough Filter Options
Dura-Life® Filter Bags
Dura-Life Filter Bags Provide Twice the Life Over Standard 540 g/m2 / 16 oz/yd2 Polyester Bags. Traditional 540 g/m2 / 16 oz/yd2 polyester bags are produced via a needling process that creates larger pores where dust can embed into the fabric, inhibiting cleaning and reducing bag life. Dura-Life bags are engineered with a unique hydroentanglement process that uses water jets to blend the fibres. This process creates a felt with smaller pores which keeps more dust on the surface of the filter resulting in better pulse cleaning and longer bags life.
Features of Dura-Life® Filter Bags
- Two to three times longer bag filter life
- Reduced maintenance and replacement bag filter costs due to fewer bag changeouts
- fan energy savings due to lower pressure drop
- Thirty percent fewer emissions based on EPA tests
Ultra-Web SB Pleated Bag
For more than two decades, Donaldson Torit has advanced the proven Ultra-Web fine fibre technology. Ultra-Web provides a very fine, continuous fibre of 0.2-0.3 micron in diameter to form a web-like net that traps dust on the surface of the media. Combining Ultra-Web technology with a sturdy spunbond polyester substrate, Ultra-Web SB pleated bag filters provide longer life, reduced downtime and reduced emissions.
Benefits of Ultra-Web SB Pleated Bags
- Up to two times longer filter life
- Energy savings due to lower pressure drop
- Reduced maintenance and downtime costs
- Reduced emissions
- Snap-in design for tool free installation
- Fully synthetic snap-in design eliminates the need to provide bonding points
Ultra-Web® SB pleated bag filters
Pleated bag filters
Dura-Life™ bag filters
Bag filter selection guide
Ultra-Web® Filter Technology Explained
This video explains the Ultra-Web Technology and shows how to save money and time while using Ultra-Web Filters.
Dura-Life™ Baghouse Filters
Dura-Life filtration technology exceeds that of conventional polyester and other bag filters.These bags can offer twice the life of other bags, and are offered for all popular brands of collectors.

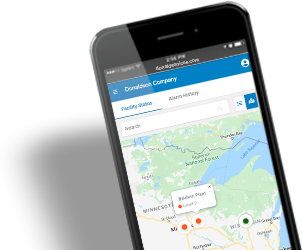

IoT Enabled with iCue™ Connected Filtration Service
This collector* is now enabled with Donaldson’s iCue™ connected filtration monitoring service. Designed to remotely monitor a facility’s dust collection equipment and provide operational insights directly to end-users, this information can help manufacturers reduce unplanned downtime, support efficient maintenance and operation, and automatically capture compliance data.
* may not be available on all models
Resources
Product Literature
Brochure
Manual
Bag filter selection guide
Related Technical Articles & Case Studies
Key Industries
Standard & Optional Features
| Collector Design | Standard | Optional |
|---|---|---|
| Clean-Side Bag Removal |  | |
| All-Welded, Carbon Steel Construction, 12 Gauge | | |
| Heavy-Duty 4 4/5 mm / 3/16 in. Plate Tubesheet | | |
| Rated 431.8 mm / 17 in. Water Gauge | | |
| Compressed Air Manifold with Drain | | |
| Flanged Clean Air Outlet | | |
| High Performance Venturis | | |
| Easy-Lift Lifting Ears | | |
| Walk-In Clean Air Plenum with 10° Sloped Roof (FTP) | | |
| Service Railing on Top of Collector (FTD) | | |
| Integrated Exhaust Weatherhood | | |
| Stainless Steel Construction | | |
| Mounted Direct Drive Fans with Outlet Hood and Birdscreen with NEMA Premium* Efficient Motor | | |
| High Performance Fan Silencer | | |
| Slide Gate Fan Damper | |
| Bages and Cages | Standard | Optional |
|---|---|---|
| Dura-Life Twice the Life Polyester Snap-In Bag Filters | | |
| Ultra-Web SB Pleated Bags | | |
| Galvanized Cages | | |
| Variety of Bag Media Options | |
| Paint System | Standard | Optional |
|---|---|---|
| Prime Coated Interior | | |
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | | |
| Standard Colors: Torit Blue or Storm White | | |
| Custom Colors | |
| Hopper Design (Not available on Bin Vent) | Standard | Optional |
|---|---|---|
| 60° Pyramid Hopper | | |
| Flanged Dirty Air Inlet | | |
| Inlet Deflector | | |
| Flanged Hopper Discharge | | |
| Hopper Access Panel | | |
| Coupling for High Level Indicator | | |
| High Level Indicator | |
| Hopper Discharge (Not available on Bin Vent) | Standard | Optional |
|---|---|---|
| Dumpster Discharge with Pneumatic Lid and Controls | | |
| Rack and Pinion Gate | | |
| 208.2 L / 55 gal Drum Cover | | |
| Various Rotary Valve Options | |
| Support Structure (Not available on Bin Vent) | Standard | Optional |
|---|---|---|
| 914.4 mm / 36 in. Clearance Leg Pack | | |
| Custom Clearance Leg Packs | |
| Electrical Controls, Gauges, and Enclosures | Standard | Optional |
|---|---|---|
| Goyen Diaphragm Valves | | |
| 120V Timerboard and Solenoid Valves in NEMA 4 Enclosure | | |
| Magnehelic** Gauge | | |
| Photohelic** Gauge | | |
| Photohelic Gauge (Weatherproof) | | |
| Delta P Control Panel without Timer | |
| Safety Features | Standard | Optional |
|---|---|---|
| 101.6 x 101.6 mm / 4 x 4 in. Bag Safety Grid (bin vent units only) | | |
| Sprinkler Access Ports | | |
| Sprinkler Pack Assembly | | |
| Explosion Vents | | |
| Ladder Safety System | |
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty | |
*All 60 Hz motors 1 HP and above are EISA compliant and considered NEMA Premium® per Table 12-12. NEMA Premium is a registered trademark of National Electrical Manufacturers Association.
**Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.
