Dalamatic® G2 Dust Collectors
Control Challenging Dust
Working with materials that create sticky or agglomerative dust can be a challenge. To help prevent the downtime and hours of clean-up caused by a clogged filtration system, you need dust control solutions specifically designed to handle the challenging dust.
Dalamatic® G2 Baghouse Dust Collector
For the control of difficult & sticky dust applications
The Donaldson Dalamatic® G2 delivers state-of-the-art technology to help you control challenging and sticky dust. This continuous-duty collector is simple to install, easy to maintain, and provides a lower total cost of ownership — all from a dust control leader you trust.
Overview
Easy Installation
Ships with bags installed.
Flexible Design
Allows installations in work areas with low headroom or a small footprint and allows Torit® Backward Inclined fan to be mounted on top or side as a custom option.
Reduced Downtime
Long-lasting filters, quicker filter replacements, and Donaldson’s Industrial Filtration Services help you optimize run-time.
Simplified Maintenance

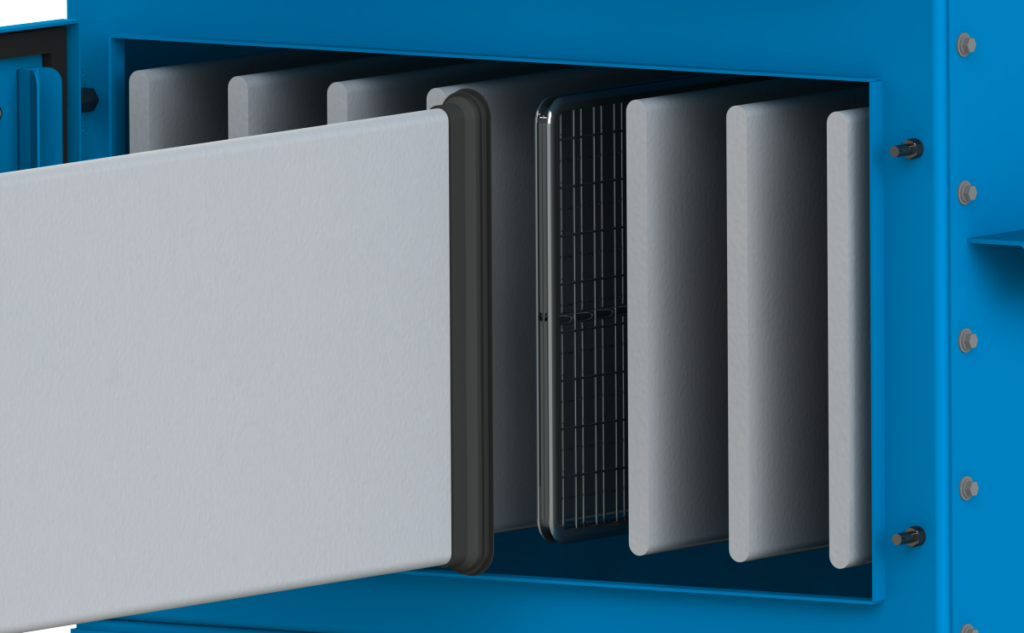

With easy-open hinged doors and access from the production (or dirty-air) side, there is no need to remove jet tubes/blowpipes for service or pull caked filters through a tight tube sheet hole. The cage stays in the collector during filter change-outs, making replacement easier and lighter. And, compared to earlier models, filter changeout times are reduced by up to 75% with 20% fewer filters to replace.
Lower Total Cost of Ownership
The Dalamatic G2 keeps total cost of ownership low through reduced maintenance costs and fewer filters to buy over the life of the collector. The G2’s reduced compressed air consumption makes it one of the most energy-efficient collectors in the industry.
Video:

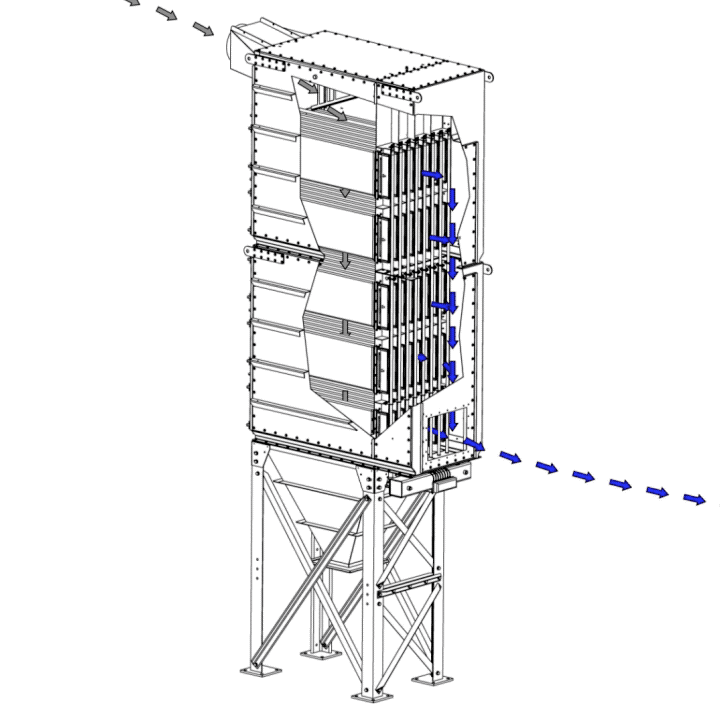

The Dalamatic G2 offers easy and flexible installation; the innovative envelope-shaped filter bags allow for superior pulse cleaning; optimized spacing between filters, for better dust drop out and easy access to filters. The collector is ideally suited for difficult dust collection.
Features

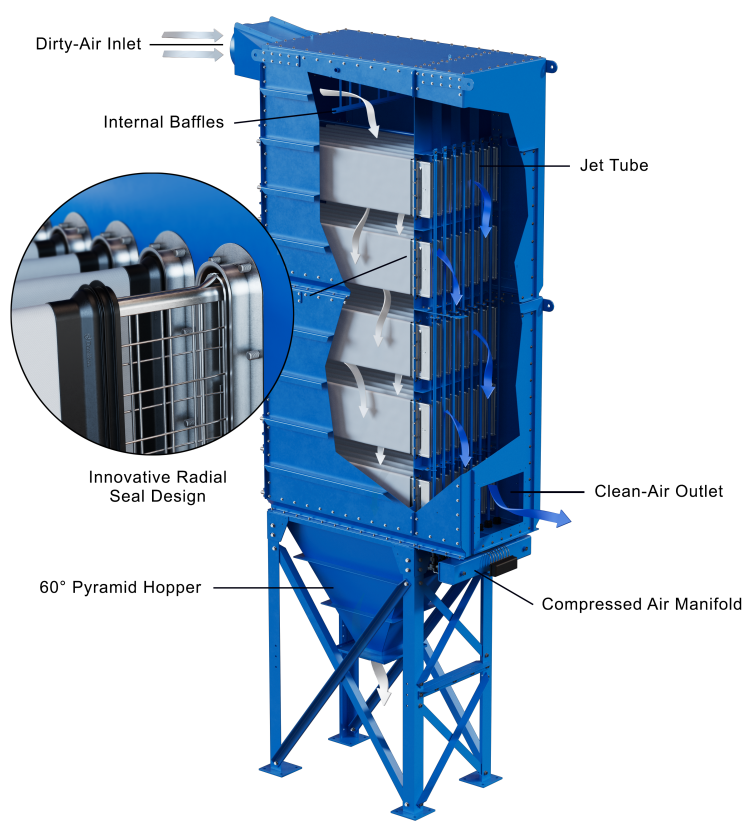

Radial Seal Technology Reduces Changeout Time
The Dalamatic G2 features a revolutionary Radial Seal filter design and fixed cages, which reduce the number of steps required in a filter change from 10 to 5. That reduces the time for filter changeouts by up to 75% compared to earlier designs.

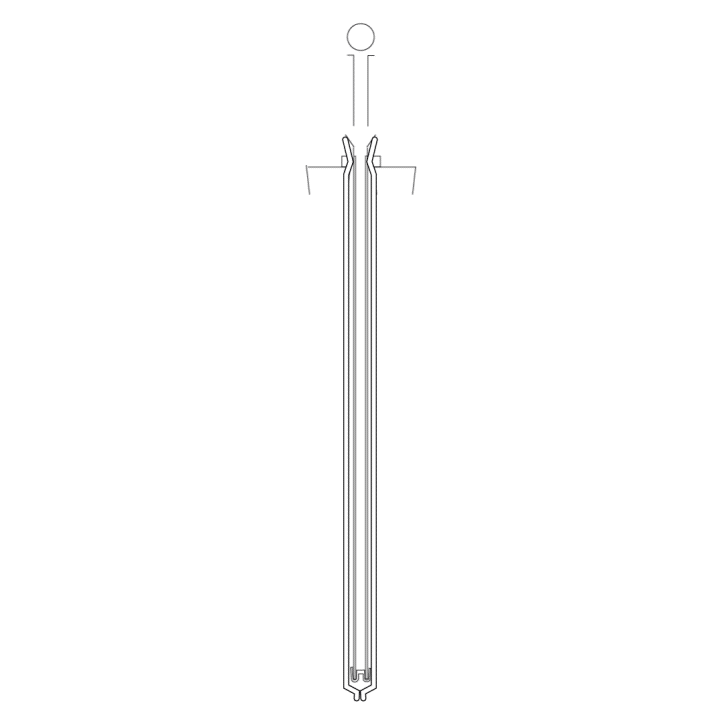

Improved Pulse Cleaning

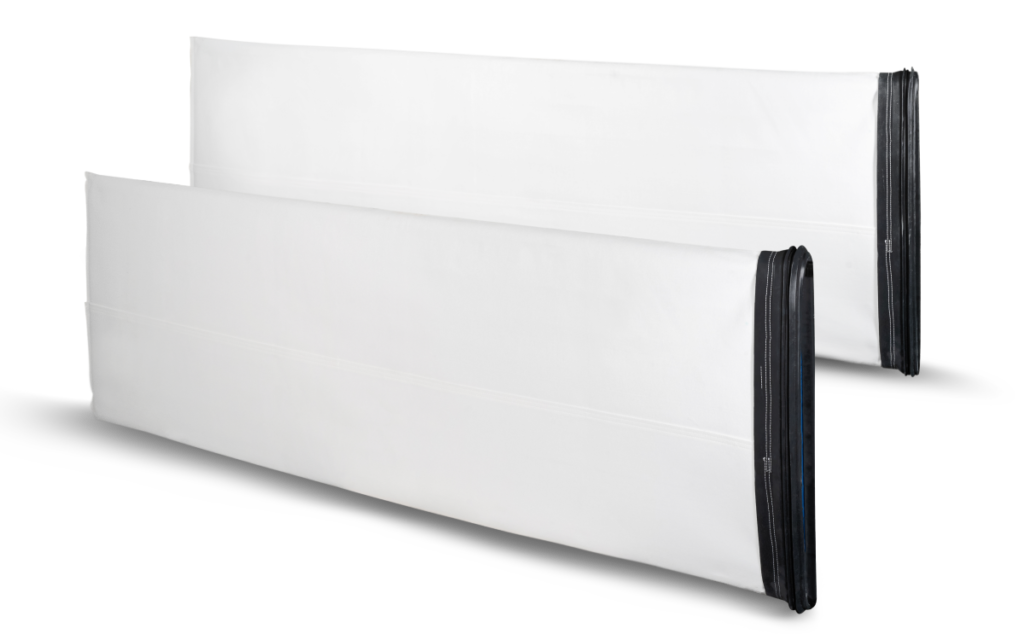

The Dalamatic G2 uses patented Dura-Life™ bag filters in a unique envelope shape that provides greater movement of the bag to dislodge challenging dust cakes. With better surface loading, Dura-Life bags provide improved pulse cleaning and a lower pressure drop, which results in extended bag life, less maintenance time and cost, energy savings and greater filtration efficiency. Dura-Life Filter Bags provide twice the life of standard 16 oz. polyester bags.
Applications
Typical Applications
- Crushing/milling
- Material handling
- Transport belts
- Elevators
- Weighing/sacking
- Drying
- Grinding
- Mixing/blending
Typical Materials
- Food
- Animal feed and supplements
- Pharmaceuticals
- Grain
- Wheat
- Rice
- Wood
- Minerals
- Gypsum
- Cement
- Sand
- Paper
Dura-Life™ Bag Filters
Dura-Life® Filter Bags provide better surface loading and better pulse cleaning reducing maintenance and operating costs.
Dura-Life® Filter Bags Provide Twice the Life Over Standard 540 g/m² / 16 oz/yd² Polyester Bags
Traditional 540 g/m² / 16 oz/yd² polyester bags are produced via a needling process that creates larger pores where dust can embed into the fabric, inhibiting cleaning and reducing bag life. Dura-Life bags are engineered with a unique hydroentanglement process that uses water jets to blend the fibers. This process creates a felt with smaller pores which keeps more dust on the surface of the filter resulting in better pulse cleaning and longer bags life.
Features of Dura-Life® Filter Bags
- Two to three times longer bag filter life
- Reduced maintenance and replacement bag filter costs due to fewer bag changeouts
- Fan energy savings due to lower pressure drop
- Thirty percent fewer emissions based on EPA tests
Dura-Life™ bag filters
Dura-Life™ Baghouse Filters
Dura-Life filtration technology exceeds that of conventional polyester and other bag filters.These bags can offer twice the life of other bags, and are offered for all popular brands of collectors.
IoT Enabled with iCue™ Connected Filtration Service
This collector* is now enabled with Donaldson’s iCue™ connected filtration monitoring service. Designed to remotely monitor a facility’s dust collection equipment and provide operational insights directly to end-users, this information can help manufacturers reduce unplanned downtime, support efficient maintenance and operation, and automatically capture compliance data.
* may not be available on all models
Resources
Product Literature

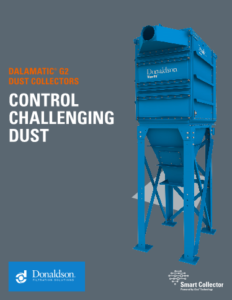

Brochure

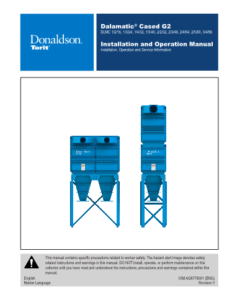

Manual
Dalamatic G2 - Cased
Bag filter selection guide
Related Technical Articles & Case Studies
Standard & Optional Features
| Collector Design | Standard | Optional |
|---|---|---|
| Mild Steel Construction |  |
|
| Horizontal Bag Removal | |
|
| High Temperature Construction | |
|
| Mountable Fan | |
| Bags and Cages | Standard | Optional |
|---|---|---|
| Dura-Life Twice the Life Polyester Felt Bags | |
|
| Variety of Bag Media Options | |
|
| Anti-Static Bag Filters | |
| Paint System | Standard | Optional |
|---|---|---|
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | |
|
| Premium Duty Finish | |
|
| Custom Colors | |
| Hopper Design | Standard | Optional |
|---|---|---|
| Pyramid Hoppers | |
|
| Single-Outlet Hopper | |
| Support Structure† | Standard | Optional |
|---|---|---|
| Standard Leg Pack | |
|
| Leg Extensions | |
| Electrical Controls, Gauges & Enclosures | Standard | Optional |
|---|---|---|
| Solid-State Control Panels and Valves in NEMA 4 Encl. | |
|
| Solid-State Control Panels and Valves in NEMA 9 Encl. | |
|
| Control Panels and Valves with Heater in NEMA 9 Encl. | |
|
| Magnehelic* Gauge | |
|
| Solenoid Enclosure NEMA 9 | |
|
| Photohelic®* Gauge | |
|
| Delta P Control, Delta P Plus Control | |
|
| Compressed Air Filter and Regulator | |
|
| Donaldson’s Industrial Filtration Services | |
| Saftey Features | Standard | Optional |
|---|---|---|
| Sprinkler Pack | |
|
| Explosion Vents | |
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty | |
| DLMC Operating Conditions | Standard | Optional |
|---|---|---|
| Seismic Spectral Acceleration | S2 =1.5 & S1 =0.6 | — |
| Wind Load Rating (mph/kph) | 90/144.8 | — |
| Housing Rating (inches of H2 0/millimeters of H2 0) | 0-20/0-508 | 21-45/533-1143 |
| Compressed Air Required (psi/bar) | 55-90/3.8-6.2 | — |
** All 60 Hz motors 1HP and above are compliant with EISA.
